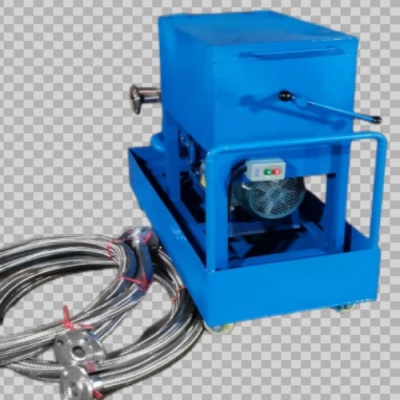

LY series frame pressure type oil purifier

Product Description

Technical Parameters

Name:Series LY Plate Pressure Oil Purifier

Model:LY-30-50-100-150-200-250-300-500

Features
☆ For purifying kinds of industrial oil, such as transformer oil, turbine oil, lube oil, engine oil, diesel oil, used in fields of electric power, petroleum, machinery, railway, shipping, automobile etc. It can effectively filter the particles, dust and trace moisture from oil.
☆ This machine is constructed by filter plate, filter frame, oil pump, motor and primary filter, the material of filter is filter paper.
☆ The filter paper is fixed between filter plate and filter frame, easy to replace, and can achieve higher filtering precise.

产品技术参数表TechnicalParameters：

指标名称 lndex		单位 Unit	LY-30	LY-50		LY-100	LY-150	LY-200	LY-300
流量 Flow Rate		L/min	30	50		100	150	200	300
工作压力 Working Pressure		Mpa	≤0.5
电源 Power Supply		V	380V 50Hz 3Ph(或根据用户需要as per user,s option)
工作噪声 Working Noise		dB(A)	≤65
过滤面积 Filtering Size		m²	≥0.39	≥0.7		≥1.3	≥1.89	≥2.01	≥3.2
滤纸尺寸 Filter Paper size		mm	185*190		290*290
加压方式 Pressure mode			手动螺旋压紧 (Screw Manually)
过滤精度 Filtration Precision		μm	≤1
滤板数量 Filter Room Number		张	9	11		13	15	18	25
滤框数量 Filter Plate Number		张	10	12		14	16	19	26
电机功率 Motor Power		kw	0.75	1.1		2.2	3	4	5.5
进出（口）管径 lnlet (Outlet)Caliber		mm	ф25	Ф32		Ф42	Ф48	Ф50	Ф60
外形尺寸 Dimension	长（L） Length	mm	900	930		1200	1200	1300	1500
	宽（W） Width	mm	300	330		440	500	550	800
	高（H） Height	mm	700	730		900	1000	1000	1100
重量 weight		Kg	90	120		180	210	250	300
